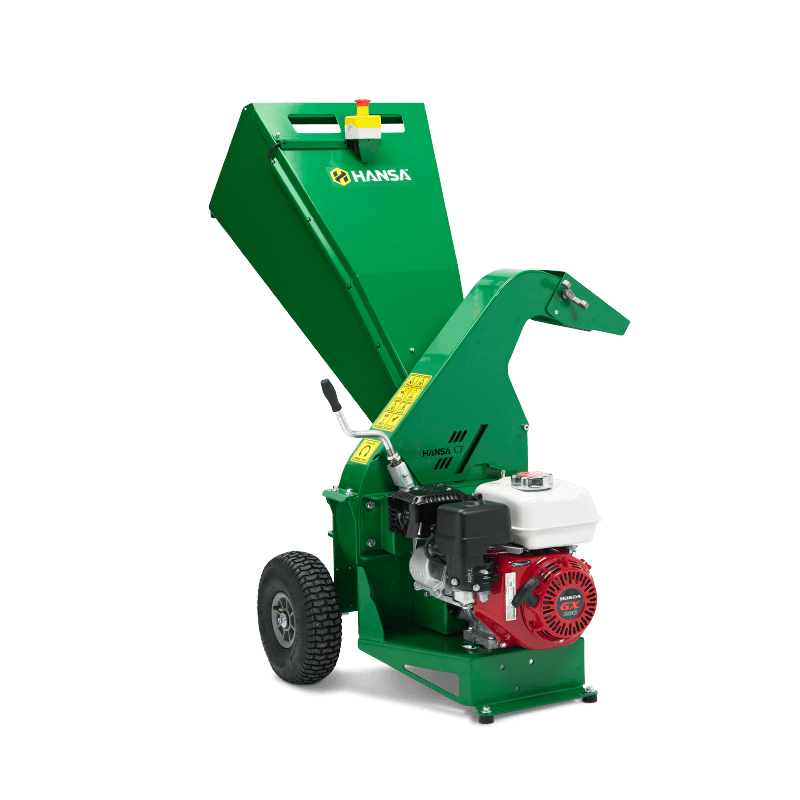

Hansa C7 Wood Chipper

The C7 is powered by the powerful 6.5HP Honda GX200 engine. An industrial-grade easy starting engine. Together with Honda we have undertaken a detailed engine match testing programme to ensure the capabilities of the C7 are perfectly balanced with the power output of the Honda GX200. This ensures the longevity of the high performance of both the chipper and engine.

The C7 delivers extraordinary self-feeding performance. The 12.5 kg cutting disc rotates at 2850 RPM creating self-perpetuating inertia. The draft created by the winged cutting disc pulls foliage into the machine fast and effectively through the 130 x 150 mm infeed opening. The outlet chute height of 780 mm allows the user to load chips onto a trailer or stockpile

Engineered and manufactured in New Zealand using the highest quality components to last a lifetime. The Soft Start Technology engages the belts between the engine and cutting disc for smooth running and protects your engine against shock loading. Made of steel and finished with a durable powder-coated finish with zinc shield rust protection delivers longevity.

Easy access for routine servicing and maintenance by removing two bolts on the housing. The two A8 modified steel knives have an impressive lifespan and can be sharpened up to 10 times. Access to the belts is easy by simply removing the belt guard.

Technical Specification

• Max Capacity - 70mm
• Engine Type - Honda GX200
• Max Power - 6.5HP/4.8kW
• Fuel Type - Petrol
• Fuel Tank Size - 3.1L
• Start Type - Recoil
• Inlet Chute Size - 130 x 150 mm
• Knife Quantity - 2
• Knife Size - 110 x 42 x 9 mm
• Knife Material - A8 Modified Tool Steel
• Cutting Disk Dims. - 400 x 10 mm
• Cutting Disk Weight - 12.5kg
• Cutting Disk Speed - 2850RPM
• Belt Drive - Twin
• Self-feeding - Yes
• Wheels - 270mm pneumatic
• Dimensions (l x w x h) - 1180 x 820 x 1255 mm
• Weight - 95kg
• Outlet Chute Height - 825 mm
• Outlet Chute Type - Deflector
