Hyundai HY100 Professional Petrol Water Pump 389cc 13hp

Hyundai HY100 Professional Petrol Water Pump 389cc 13hp

Online Exlusive
£339.99
£339.99
Sale Sold out
Tax included.

Out of stock

Free standard delivery on this item

A petrol open-frame recoil-start water pump, able to handle a range of clean water pumping tasks in your business.

Powered by a 389cc 4-stroke, single-cylinder Hyundai IC390 engine, the HY100 has an impressive pumping capacity of 75,000 litres per hour - a huge 1,250L of fluid a minute. This makes it a great option for preventing or minimising the damage that flooding can cause. This self-priming centrifugal water pump features easy recoil pull-starting for a reliable start each and every time. With a maximum suction head / lift of 7 metres and 4" / 100mm inlet and outlet, the HY100 has a total head / lift of 20m which makes it the ideal water pump for a wide variety of clean water pumping applications. Designed to be used primarily in fresh water, the HY100 is able to handle particles, such as gravel or other solids, up to 9mm in diameter.

Highlights:

  • Petrol open-frame clean water pump: Able to handle water pumping tasks in your home or business
  • Suitable for a range of purposes: Can be used to drain hot tubs, swimming pools, garden ponds, puddles or flooded areas
  • 389cc 4-stroke Hyundai engine: Pumps a massive 1,250L of water per minute

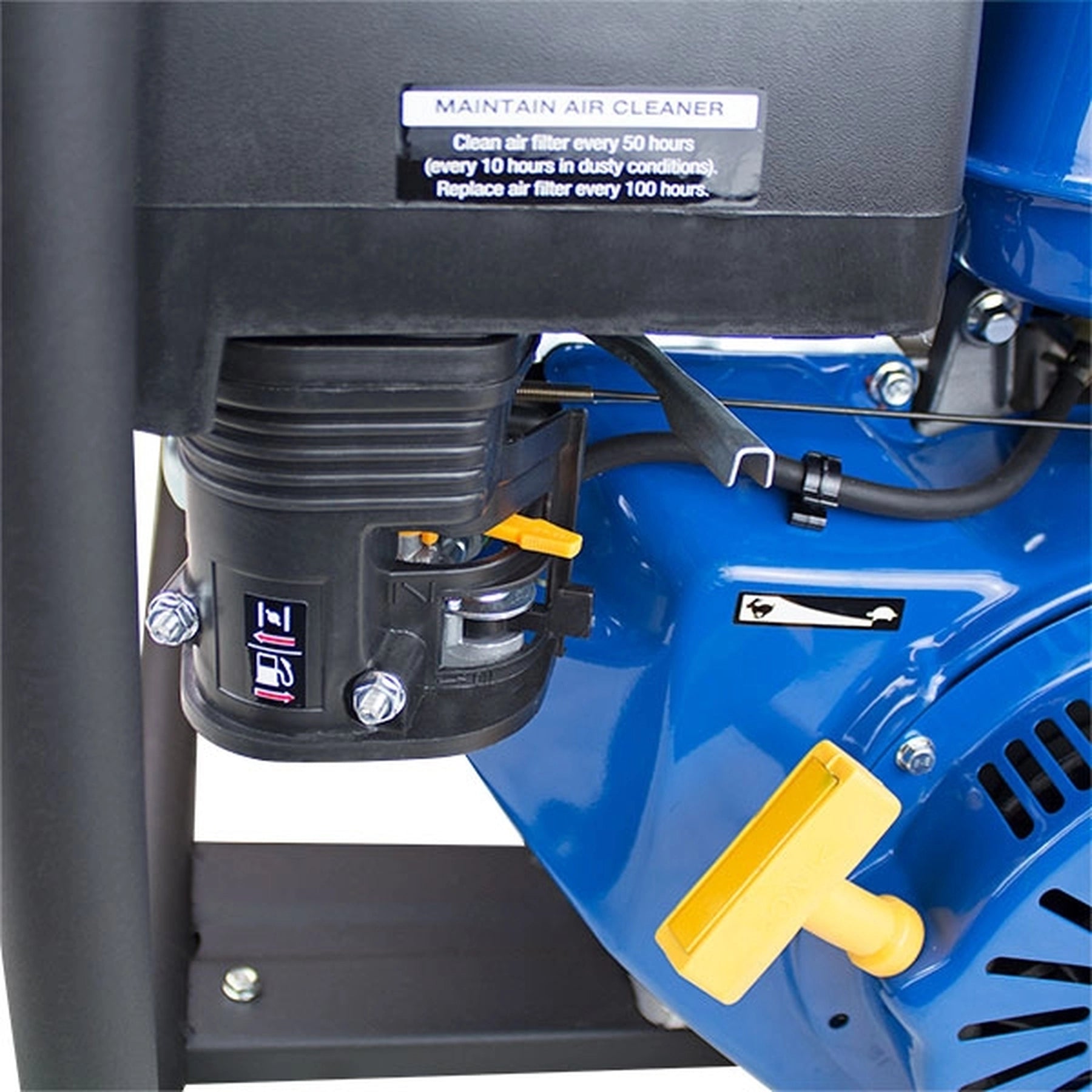

  • Easy recoil pull-start: Simple to start each and every time
  • Total head of 20m and suction head of 7m: Suitable for a variety of pumping applications
  • 4" inlet and outlet: Able to handle solids of up to 9mm
  • Open-frame design: Highly portable and protects the pump from knocks
  • Extra-large 6.5L fuel tank: Saves you from having to keep stopping and topping it up with fuel
  • Peace of mind: 3-year platinum Hyundai warranty

Technical Specification:

  • Model - HY100
  • Start Method - Recoil
  • Pump Type - Aluminium Housing
  • Water Type - Clean
  • Fuel - Petrol
  • Fuel Capacity (L) - 6.5
  • Impeller Type - Cast Iron
  • Drive Type - Direct Drive
  • Engine Oil - 5W-30
  • Engine Oil Capacity (ml) - 1.1
  • Max Flow Rate (L/min) - 1250
  • Max Flow Rate (L/hr) - 75000
  • Inlet (inches/mm) - 4/100
  • Outlet (inches/mm) - 4/100
  • Max Solids (mm) - 9
  • Suction Lift (m) - 7
  • Total Lift (m) - 20
  • Engine Model - IC390
  • Engine Type - Hyundai IC390
  • Engine Size (cc) - 389
  • Rated Power (kW/kVA) - 8.6
  • Max Power (kW/kVA) - 9
  • Maximum Power @ 3000rpm (hp/kw) - 10.7/8
  • Maximum Power @ 3600rpm (hp/kw) - 12/9
  • Net Installed Power @ 3000rpm (hp/kw) - 10.7/8
  • Net Installed Power @ 3600rpm (hp/kw) - 12/9
  • Speed (RPM) - 3600
  • Noise Level (db) - 104
  • Net Weight (kg) - 31
  • Fully Assembled Dimensions (H x W x L) (mm) - 480 x 420 x 450
  • Package Dimensions (H x W x L) (mm) - 660 x 510 x 550
  • Fuel Type - Unleaded Petrol
  • Product Type - Water Pump
  • In The Box - HY100 Petrol Water Pump, Filter, Spark Plug Spanner & User Manual
  • Model EAN 5056275722852
