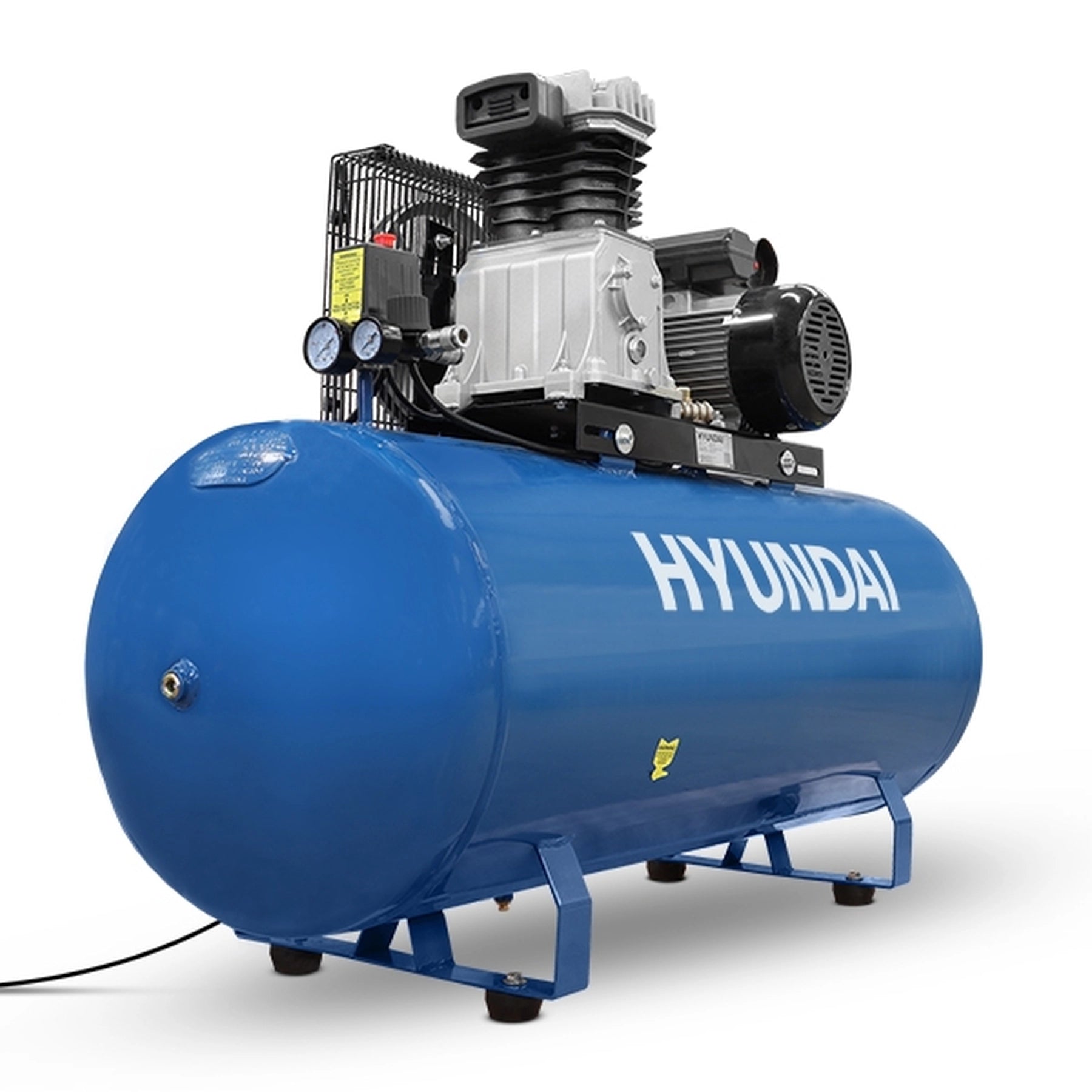

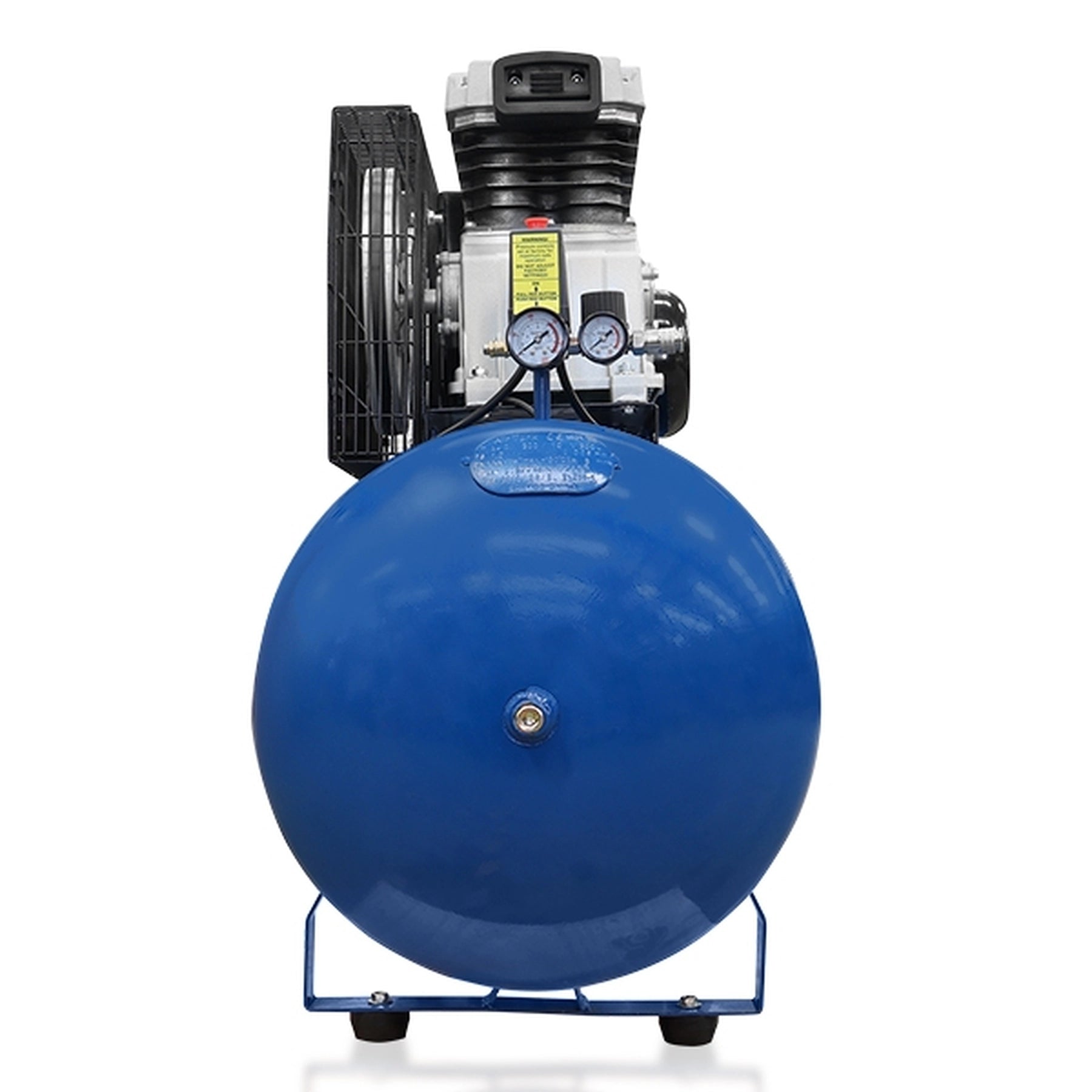

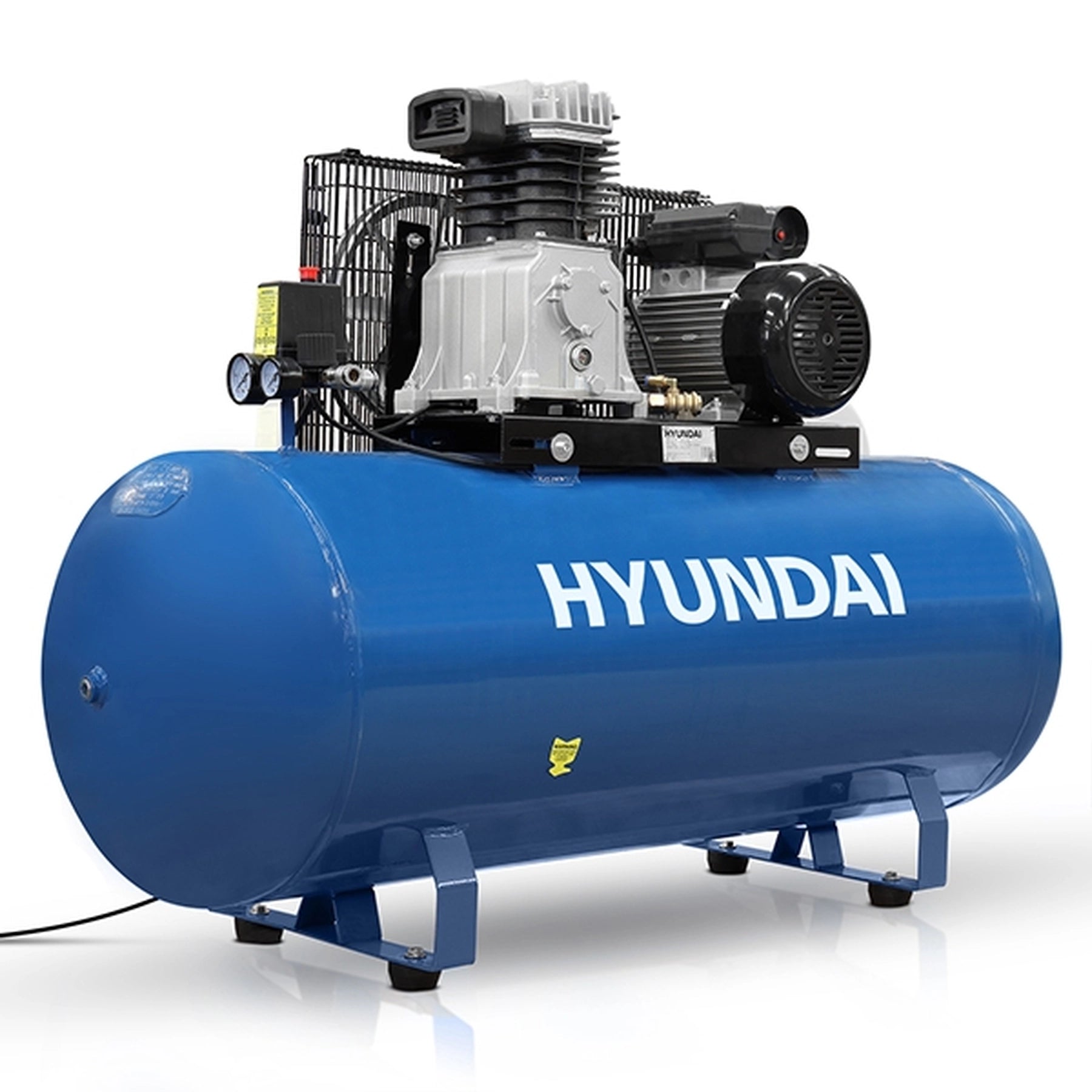

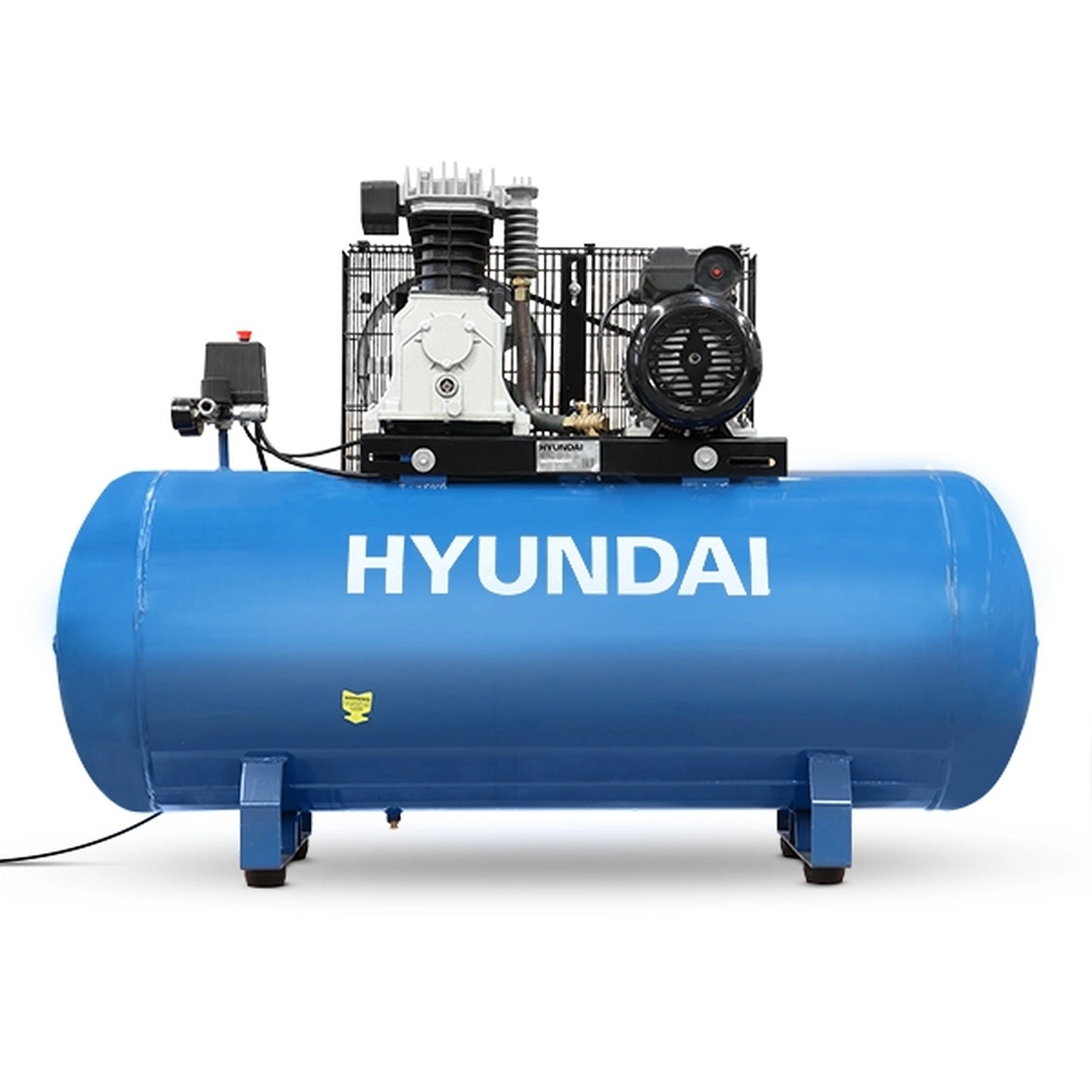

Hyundai HY3200S Electric Air Compressor 200L

Features:

• HY3200S air compressor designed for commercial and professional workshop use.

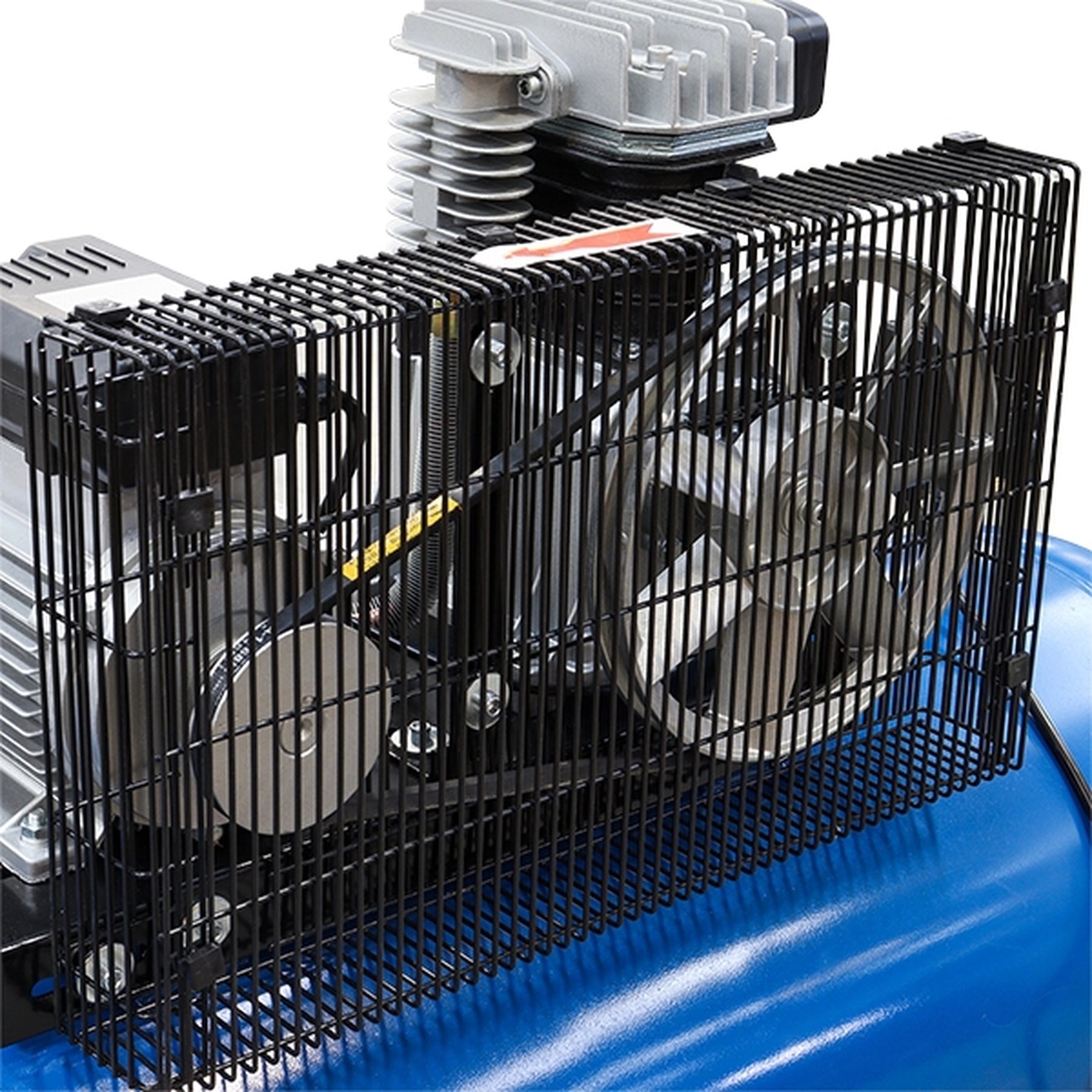

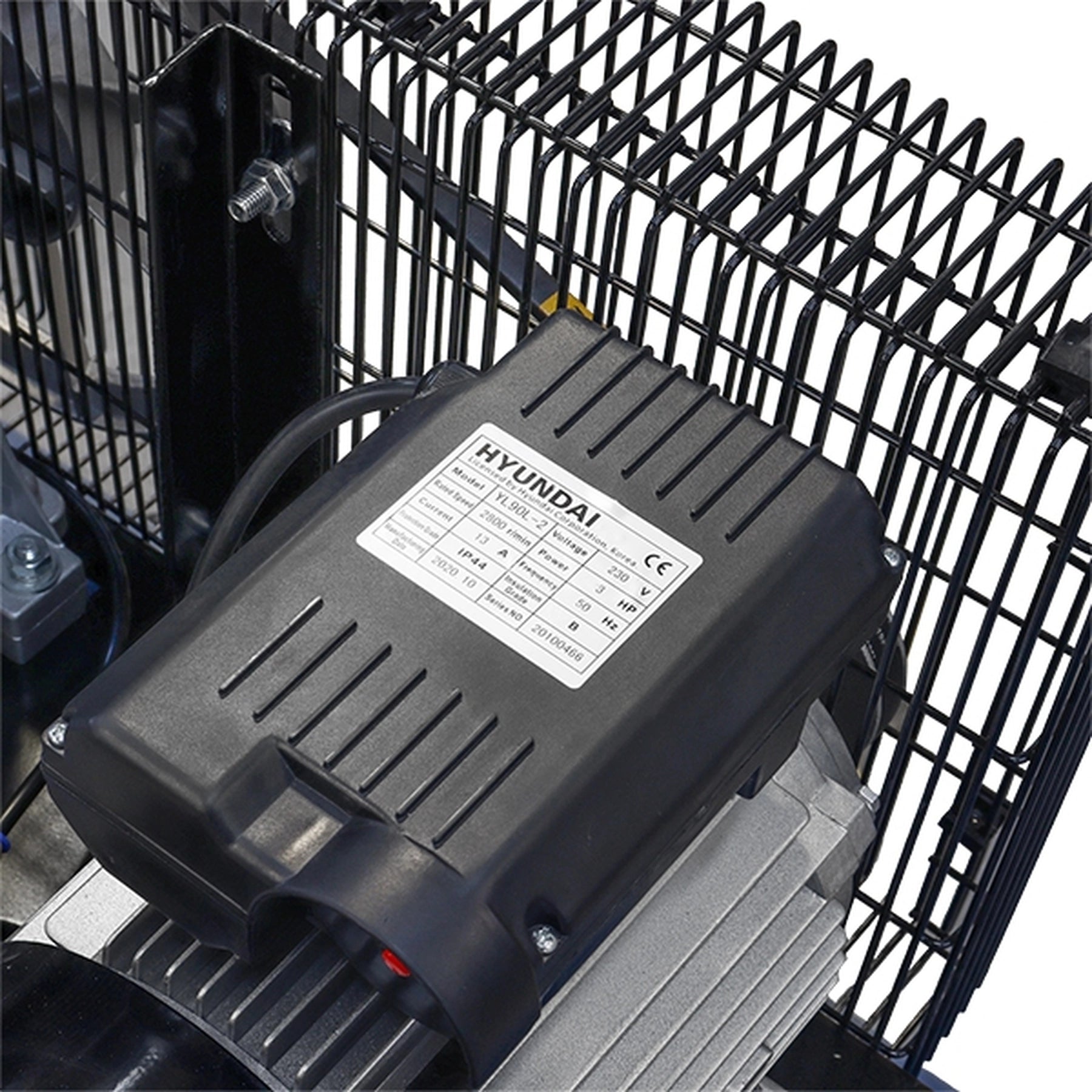

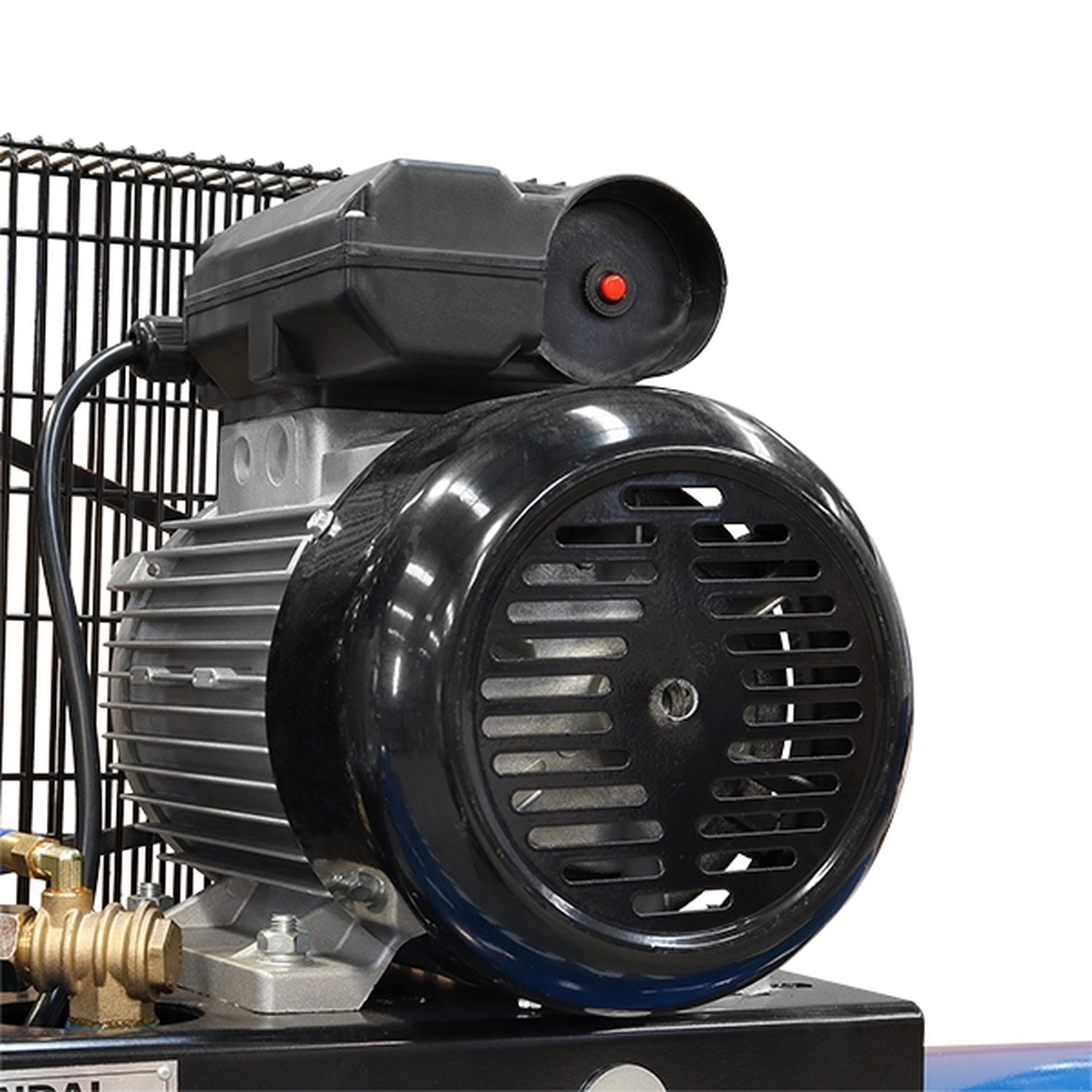

• A belt-drive air compressor, powered by an efficient 230v 3hp electric motor.

• The large 200L rolled steel air tank provides the capacity for powering you through the most demanding of jobs.

• Single-phase air compressor, with a displacement of 14cfm and a maximum pressure of 145psi / 10 bar.

• Ideal for workshop use.

• Covered by Hyundai 2 year warranty.

• Full spares are available to maintain your air compressor for years to come.



Technical Specification:

• Model - HY3200S
• Start Method - 13A UK Plug
• Fuel Type - Electric
• Cable Length (m) - 1.4
• Stationary / Wheeled - Stationary
• Drive Type - Belt Drive
• Tank Capacity (L) - 200
• Tank Material - Steel

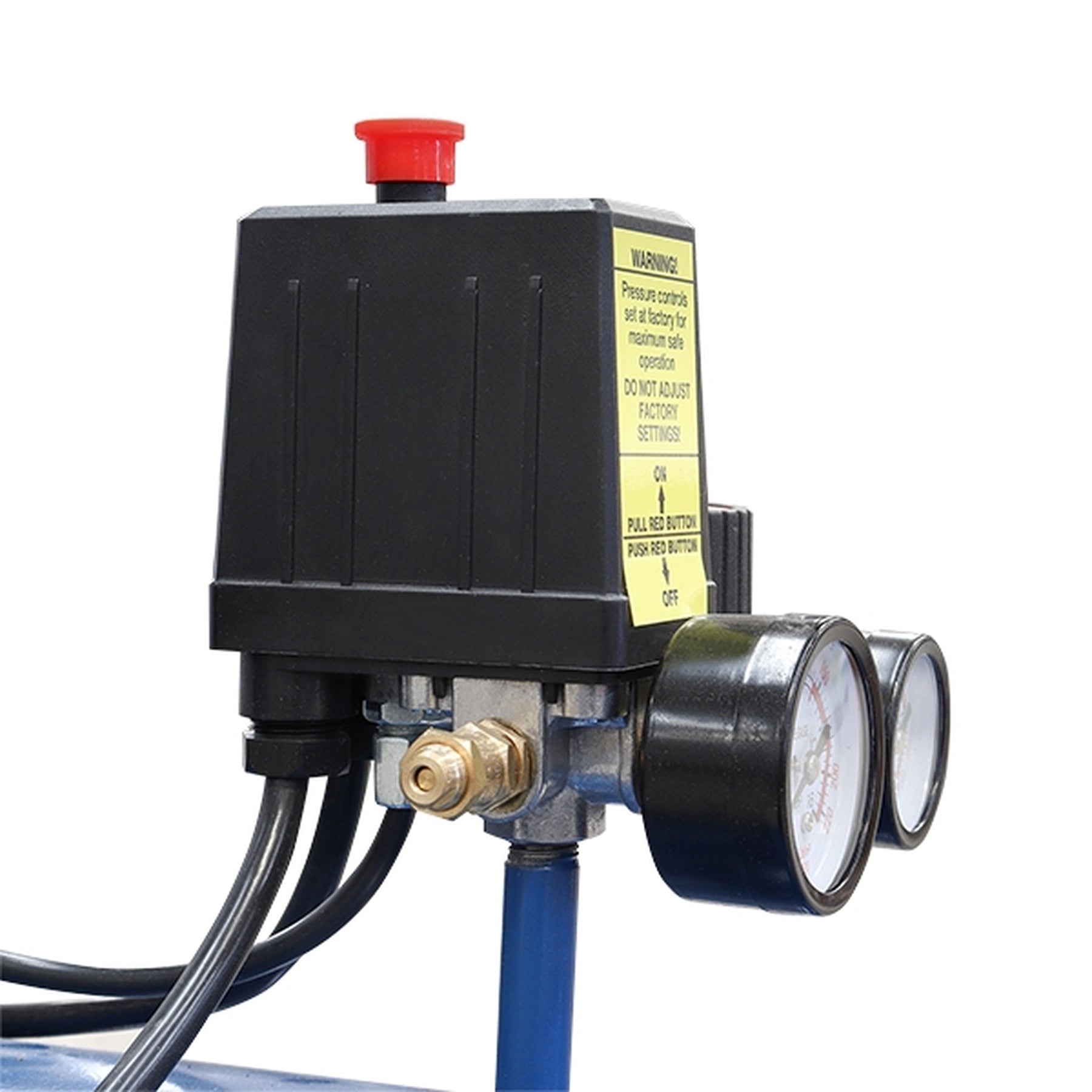

• Cut-In Pressure (psi/bar) - 116/8
• Cut-Out Pressure (psi/bar) - 116/8
• Discharge Pressure (psi/bar) - 145/10
• Max Pressure (psi/bar) - 145/10
• Air Flow FAD (L/min) - 300
• Air Flow FAD (CFM) - 11
• Air Displacement (L/min) - 396
• Air Displacement (CFM) - 14

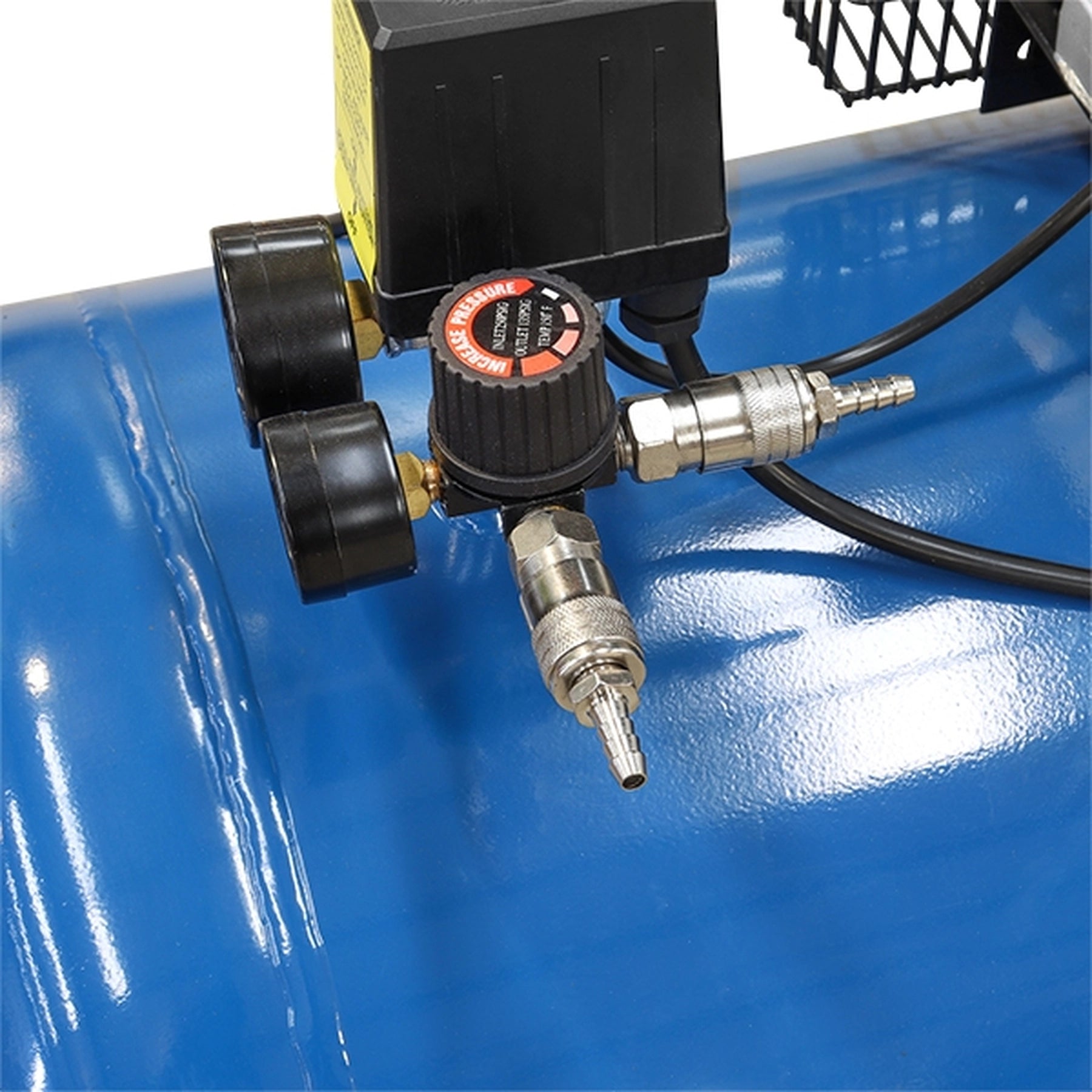

• Air Outlet Connection - Euro Quick Release
• Outlet Pressure Regulation Type - Adjustable
• Phase - Single
• Voltage - 230
• Rated Power (w) - 2200
• Motor Power kW/hp - 2.2/3
• Pump (RPM) - 1050
• Motor Speed (RPM) - 2850
• Frequency (Hz) - 50
• Noise @ 7m (dB) - 75
• Gross Weight (kg) - 115
• Net Weight (kg) - 105
• Fully Assembled Dimensions (H x W x L) (mm) - 980 x 500 x 1310
• Packaged Dimensions (H x W x L) (mm) - 1020 x 520 x 1360
• Product Type - Air Compressor
• Warranty (years) - 2
• Model EAN - 747150287775
• In The Box - HY3200S Electric Air Compressor, User Manual
