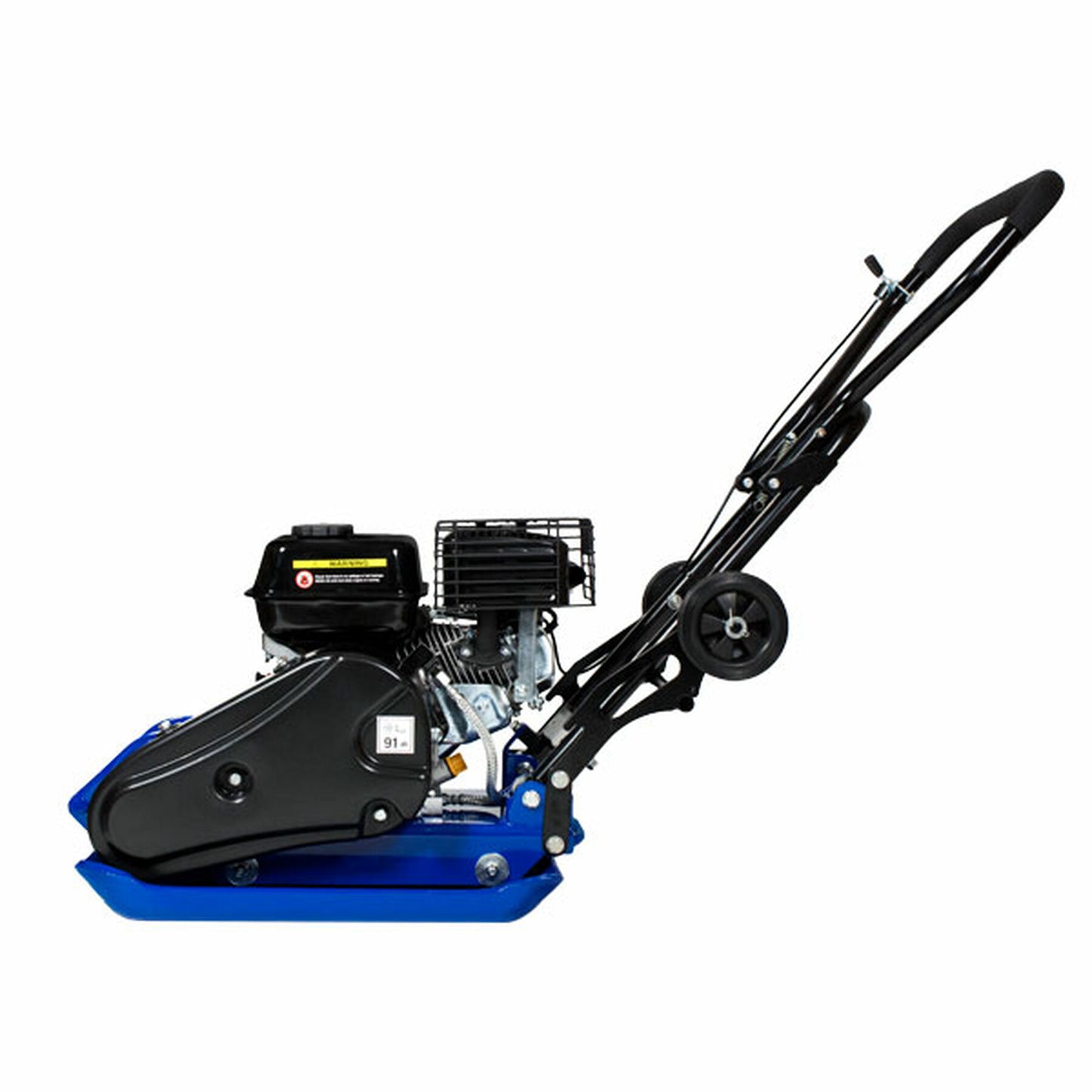

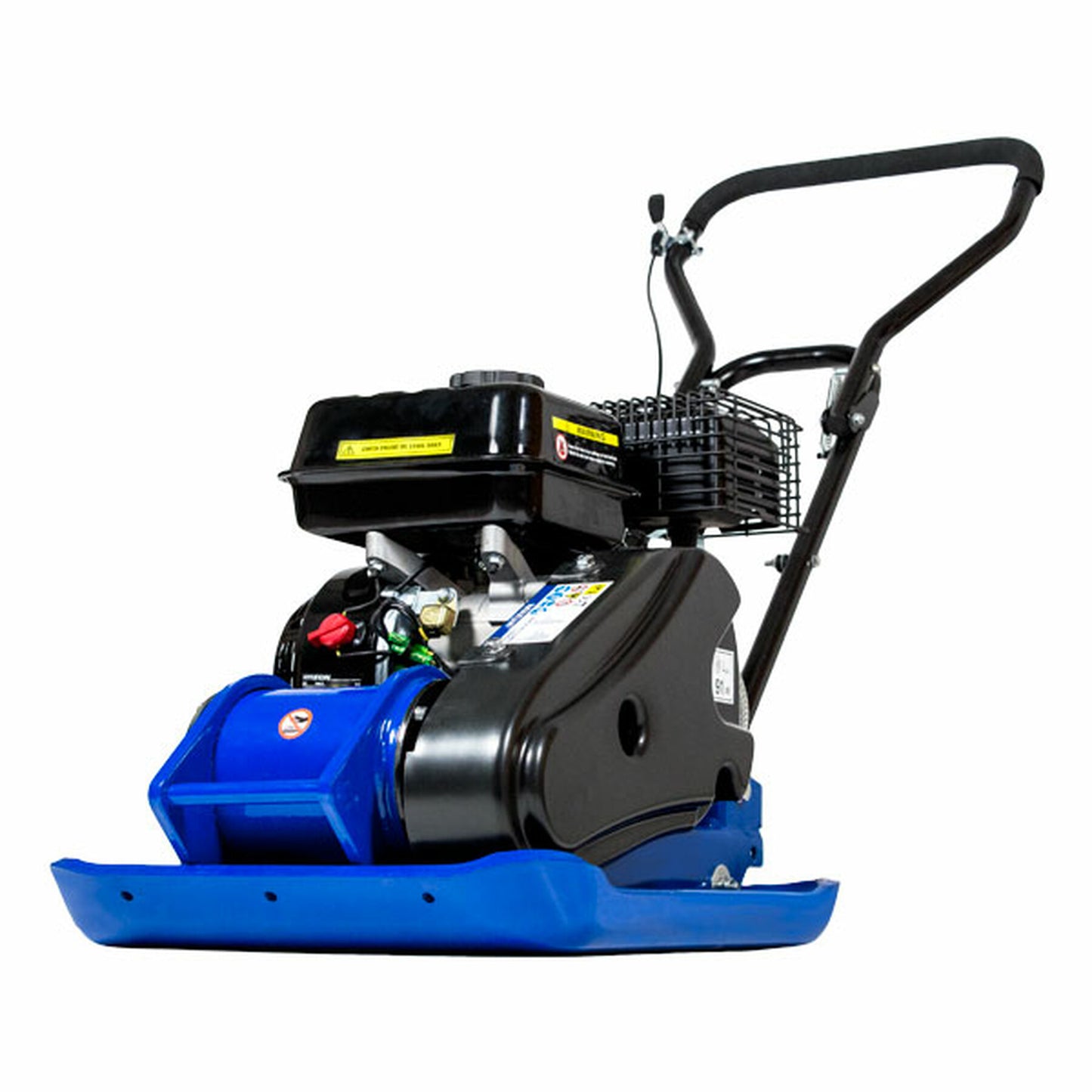

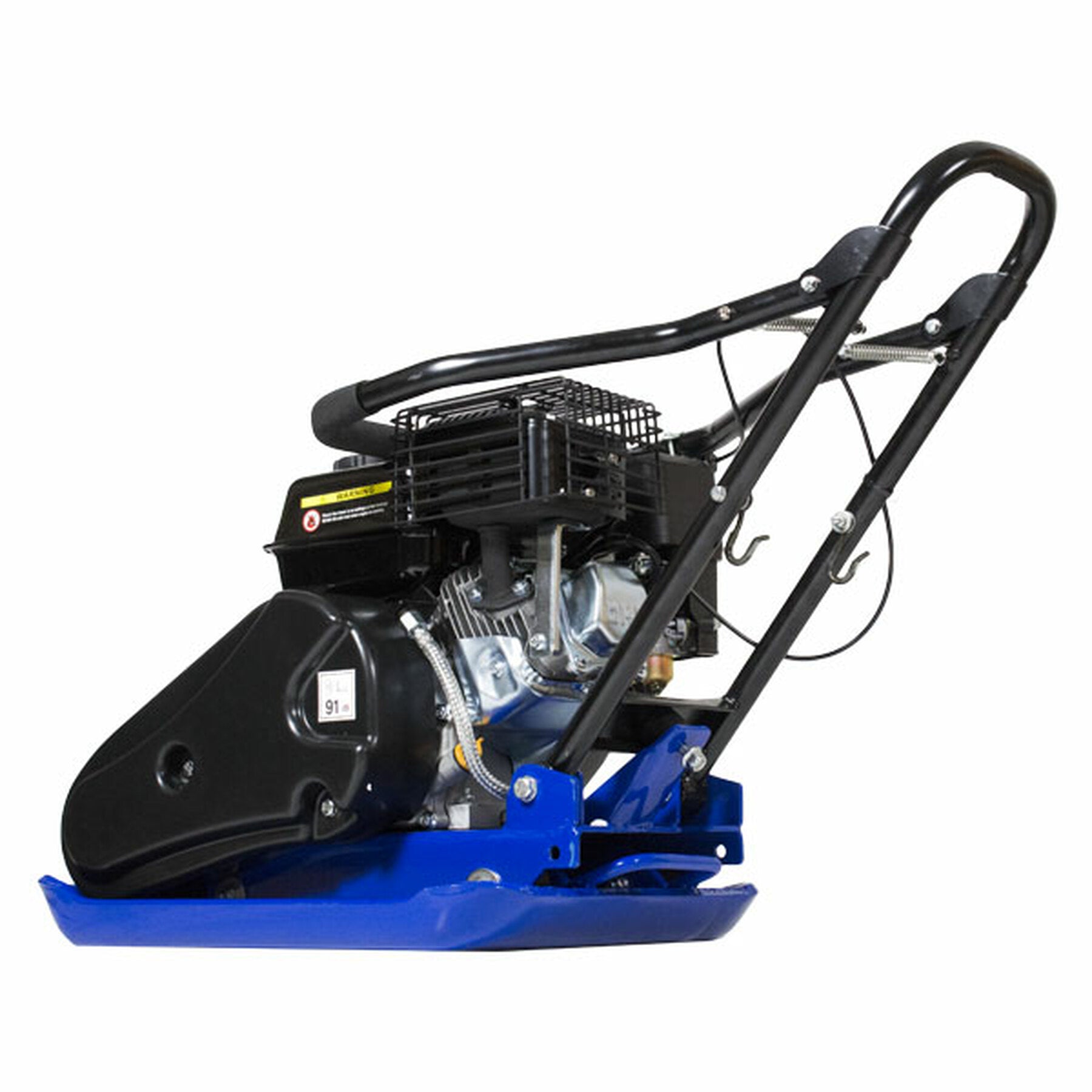

Hyundai HYCP9070 Petrol Plate Compactor - Wheel Kit & Paving Pad

Hyundai HYCP9070 Petrol Plate Compactor - Wheel Kit & Paving Pad

Online Exlusive
Regular price £399.99
Regular price Sale price £399.99
Sale Sold out
Tax included.

Out of stock

Free standard delivery on this item

With a travelling speed of 15m/min and a compaction depth of 300mm, this compactor plate is suited for jobs both large and small, such as building driveways, patios, decking, block paving and more.

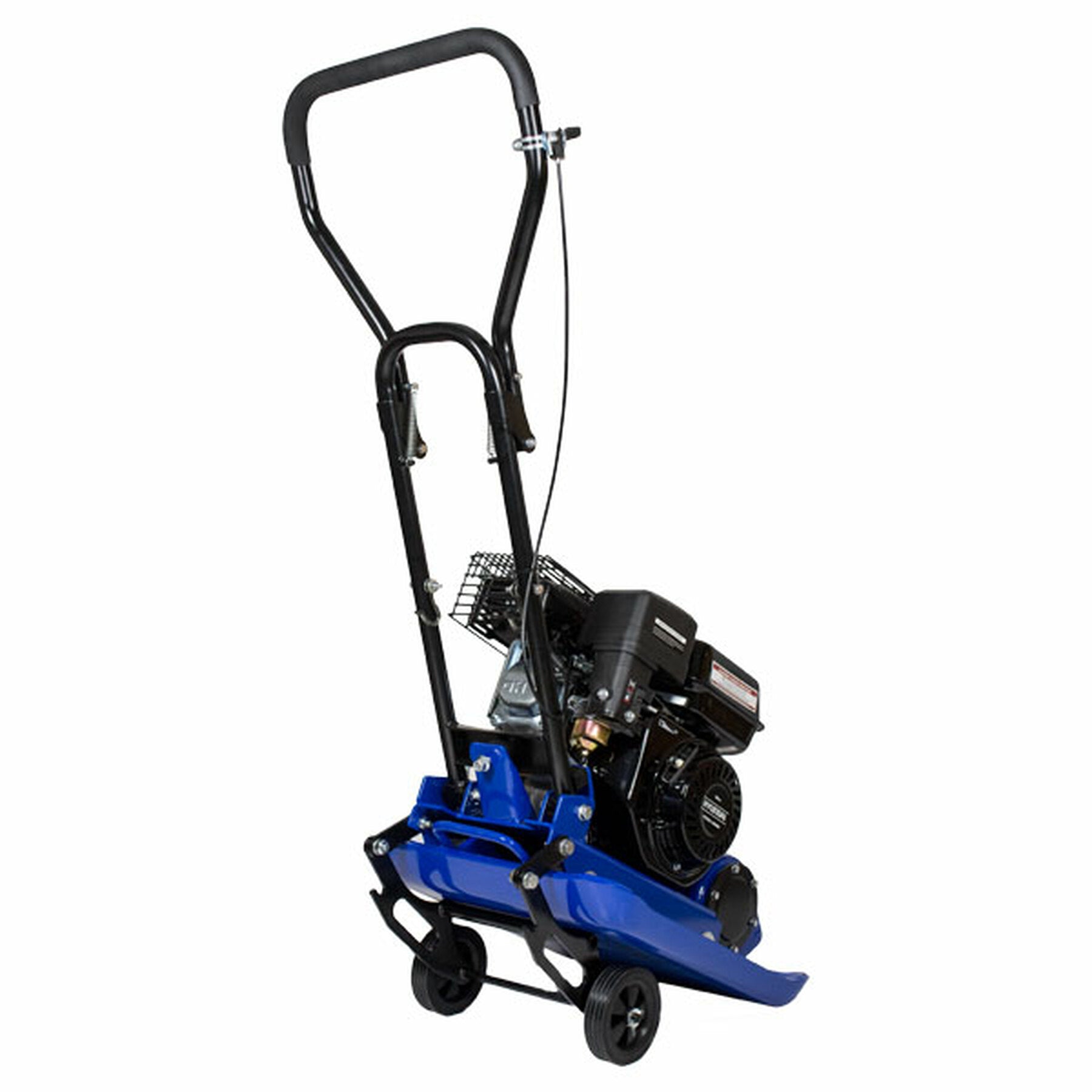

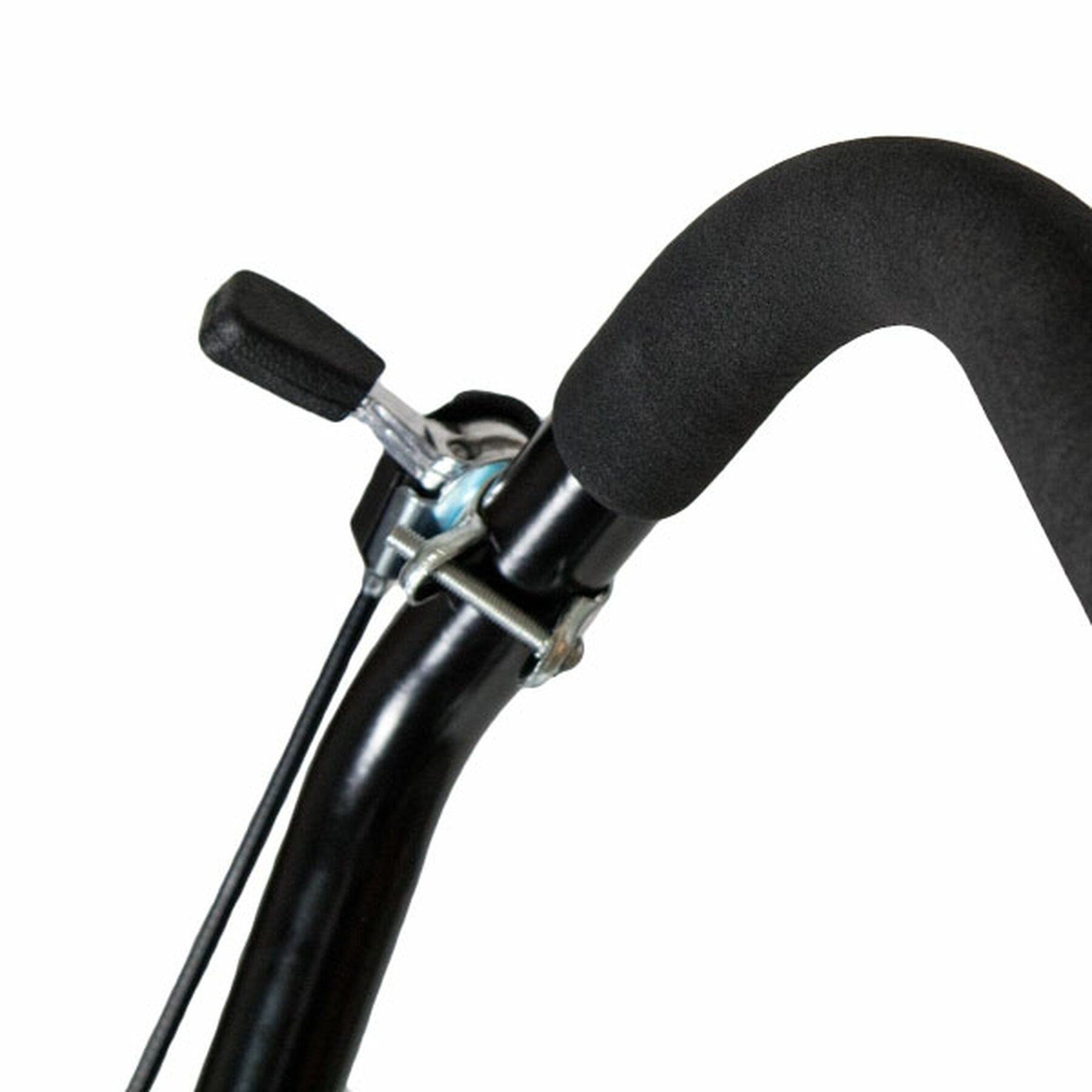

Providing a cost-effective alternative to hiring. The HYCP9070 is more than capable of compacting soil, sand and gravel into a level and solid foundation. The included paving pad will protect patios and block paving from being marked during use. The wheel kit and guide handle allows for easy manoeuvrability and incorporates a soft grip foam to increase comfort for the user. The handle will also fold down for ease of transport and storage. The controls to run the compactor plate are all within easy reach of the guide handle making operation and control simple.

Features:

  • The flagship Hyundai compactor plate, is powered by a 196cc 4-stroke recoil start petrol engine for reliable performance.
  • Ideal for compacting soil, gravel and sand together for patios, driveways, conservatories and more.
  • Equipped with a large fuel tank for long-running.
  • Fitted with a large plate for working effectively on large areas.
  • Has a travelling speed of 15m/min, with a compaction depth of 300mm.
  • Wheel Kit and Paving Pad included.

Technical Specification:

  • Model - HYCP9070
  • Start Method - Recoil
  • Compaction Depth - 300
  • Centrifugal Force (N) - 13000
  • Travel Speed (m/min) - 15
  • Vibration value m/s2 - 15
  • Exciter Oil Capacity (ml) - 100
  • Exciter Speed (RPM) - 5500
  • Handle Type - Soft Grip
  • Safety Features - Oil Alarm
  • Engine Model - 168F
  • Engine Type - Hyundai 4-Stroke
  • Engine Size (cc) - 196
  • Rated Power (hp) - 5.2
  • Rated Speed (RPM) - 3600
  • Fuel Unleaded - Petrol
  • Fuel Capacity (L) - 3.6
  • Engine Oil - SAE30 or SAE15W40
  • Engine Oil Capacity (ml) - 600
  • Sound Level (db) - 86
  • Gross Weight (kg) - 81.5
  • Net Weight (kg) - 79
  • Fully Assembled Dimensions (H x W x L) (mm) - 860 x 440 x 1220
  • Package Dimensions (H x W x L) (mm) - 475 x 440 x 755
  • Fuel Type - Petrol
  • Product Type - Compactor Plate
  • Warranty (years) - 3
  • Commercial Warranty (years) - 1
  • Model EAN - 747150287836
  • In The Box - HYCP9070 & Manual

SKU: Z-HY-HYCP9070

MPN: HYCP9070

ID: Z-HY-HYCP9070
